New Products

확대보기

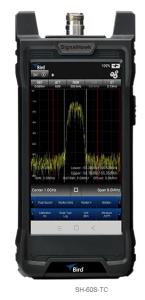

Hand Held Spectrum Analyzer SH-60S-TC
SH-60S-TC

9 kHz to 6 GHz RF Spectrum Analyzer
첨부파일1 SH-60S-TC_datasheet.pdf
첨부파일2 Brochure-Spectrum-Analyzer-SignalHawk.pdf

더이상 상품이 없습니다
제품상세내용

9kHz to 6GHz RF Spectrum Analyzer



Features

  • Easily scan, classify and locate signals of interest in the field environment
  • Endure the harshest working conditions with real-time RF spectrum analyzers designed for durability – completely sealed, rugged & weather-resistant
  • Measure RF power using an optional Bird power sensor
  • Measuring slight changes in impedance will help uncover passive intermodulation distortion and adjacent channel power problems for digitally modulated signals
  • Scan the environment to discover spectrum events other analyzers will miss with predefined measurements
  • Big on performance with industry leading dynamic range, sweep speed and amplitude accuracy
  • Rugged high-resolution touch screen display simplifies the setup and data capturing
  • Save time and ensure consistent results by automating routine tasks for basic spectrum analysis
  • View the spectrum with trace display, spectrogram display, or both
  • Up to 4 hours with rechargeable battery
  • Lightest, all-in-one analyzer at only 1.98 lb (0.9 kg)

Predefined Measurements Include:

  • Channel Power Measurements
  • Adjacent Channel Power Ratio (ACPR)
  • Phase Noise
  • N dB Down bandwidth
  • Occupied Bandwidth (OBW)
  • Field Strength Measurements
  • FM Demodulation
  • CNSS (GPS) Signal Quality
  • Spectrum Masking and Limit Lines
